Stair Runner Brackets Guide

Bracket types

Positioning and spacing

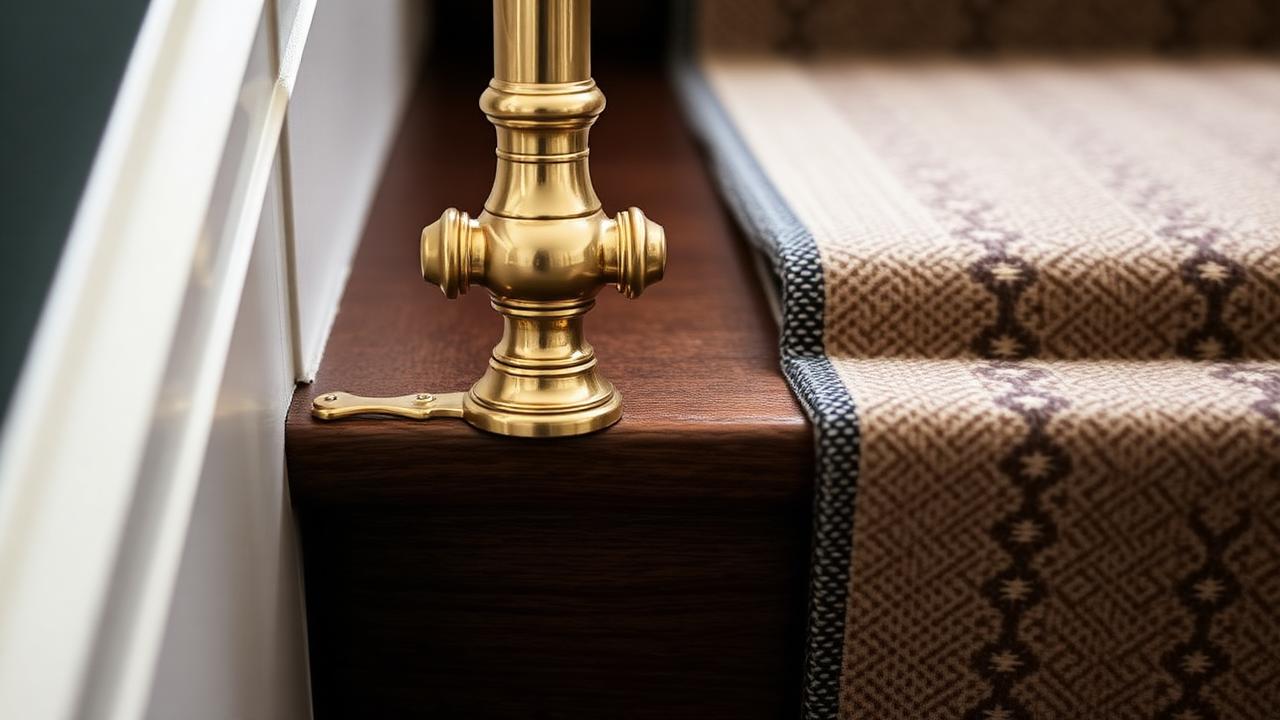

Brackets go outside the edges of the runner, not on top of it, so the rod bears on the tread-riser angle just beyond where the carpet ends. Each bracket needs to sit level with its pair on the opposite side so the rod runs straight; a difference of even a few millimetres in height is visible once the rod is in place.

Weight limits by fixing type

• Screw-fixed brass or steel brackets: rated for any rod weight, including solid brass.
• Adhesive foam pad brackets: light rods only, roughly 0.5 to 1 lb per bracket.
• Adhesive disc/epoxy brackets: moderate rods, roughly 1 to 2 lb per bracket.
• Tension clips: decorative slim rods only, not solid brass.

Matching brackets to rods

Installation implications

Bracket type determines how much of the tread and riser junction gets drilled and how easily the rod can be removed later for cleaning or runner replacement. Open-back brackets let the rod lift out for cleaning without unscrewing anything, while closed or wraparound brackets are more secure and tamper-resistant but require full removal of screws to access the rod.

Common specification mistakes

A common error is buying rods and brackets from different ranges without checking diameter compatibility precisely; a rod even half a millimetre out of spec can sit loosely or fail to seat properly in a bracket cup, causing a rattle or an unstable fit that becomes obvious within weeks of daily use.

• Mixing rod and bracket brands without confirming exact diameter compatibility.
• Choosing open-back brackets in a home with small children who could lift rods out.
• Not checking bracket projection depth against runner and pad thickness, which can leave a visible gap.

Bracket finish and durability

DIY vs hiring for bracket fitting

Fitting screw-fixed brackets is one of the more approachable parts of a stair rod project, needing only a drill, a level and careful marking, so it suits confident DIYers. Recessed or cup brackets that need a precisely drilled socket are fiddlier and often better left to a fitter if you are not confident with a router or specialist drill bit.

Checklist before you drill

• Confirm the runner is centred and straight along the full flight.
• Mark both bracket positions on a step and check them level before drilling either.
• Test the bracket-to-rod fit on one step before repeating up the whole flight.
• Keep spare screws and one spare bracket pair in case of a fitting error.

Cost ranges at a glance

Keep the receipt and product reference for your bracket purchase; if one bracket fails or is lost years later, matching the exact bore and finish is far easier with the original order details to hand.

A quick annual check of every bracket screw for tightness takes only a few minutes and catches loosening before a rod becomes wobbly or falls out of its bracket entirely.

Bracket materials and corrosion resistance

Steel brackets without a protective plating or coating can rust over time, particularly in stairwells near an entrance door where damp shoes and umbrellas are common. Stainless steel, solid brass and powder-coated steel brackets all resist corrosion reliably, while bare or thinly plated mild steel brackets are the ones most likely to develop rust spots that stain the surrounding tread within a few years.

Replacing a single failed bracket

If one bracket among a matching set fails or is lost, check first whether the manufacturer still stocks that exact reference, since bracket ranges are updated more often than rods themselves. If an exact match is unavailable, replacing all the brackets on one side of the staircase, rather than a single bracket, usually gives a more even result than mixing an old and new finish side by side.

Brackets on winder and curved staircases

Standard straight brackets often cannot sit correctly on the narrow inside edge of a winder or pie-shaped step, since the tread depth varies across its width and a bracket designed for a uniform straight tread may not have enough material to bite into. Specialist curved-stair bracket kits, or brackets repositioned slightly further from the tread edge, are usually needed on these steps, and it is worth asking a supplier specifically about winder compatibility before ordering a full-flight set.

Replacing brackets when changing rod diameter

If you are upgrading from slim 9.5mm rods to a heavier 16mm set, or vice versa, the existing brackets almost certainly will not fit the new rod diameter and need replacing as a full set rather than reused. Check this before ordering new rods alone, since a diameter mismatch between rod and bracket is one of the most common returns reported by stair hardware suppliers.

Bracket noise and rattling over time

A bracket that develops a slight rattle usually means the screw has loosened slightly rather than the bracket itself failing, and this is worth checking every six to twelve months as part of routine stair maintenance. A quick re-tightening with the original screwdriver takes seconds per bracket and prevents the small vibration from gradually widening the screw hole in the wood over years of use.

Finally, always keep the product reference number for your chosen bracket noted somewhere safe, since matching an exact bore and finish years later for a single replacement is far easier with this detail to hand.
